INT-D Half Shell Key Push Pull 102/0F 103/1F 104/2F 105/3F Size Connector Receptacle

Short Description:

Model (INT-DE) Series 102/103/104 size Fixed socket, male contacts/female contacts. with half-shell coding (G or A), multi-pin.


  • Min.Order Quantity: 1 Piece
  • Supply Ability: 30000 Pieces / Month
  • Port: Shenzhen
  • Payment Terms: T/T,L/C,PayPal,Western Union
  • Product Detail

    Product Tags

    F series connector with the following main features:
    1. Original push-pull locking system.
    2. Widely adopted by the industry.
    3. Unparalleled signal integrity.
    4. Fully secured against accidental disconnection.
    5. Self-locking mechanism.
    6. Designed for frequent connect/disconnect operations.
    7. Ideal for compact product designs.
    8. Locking system integrated into connector housing.
    Technical characteristics:
    Mechanical and Climatically
    1. Endurance: > 5000 mating cycles.
    2. Humidity: up to 95% at 60 ºC.
    3. Temperature range: -40ºC, +250 ºC.
    4. Resistance to vibration: 15 g [10 HZ-2000HZ].
    5. Shock resistance: 100 g ,6 MS.
    6. Salt spray corrosion test: > 48h.
    7. Protection index (mated): IP 50.

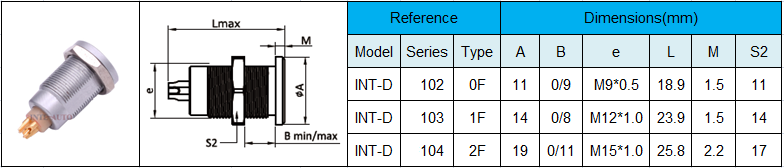

    INT-D

    Industry Application:
    This F series are widely used in electronics, instrumentation, video processing, sensors, medical equipment, and detection system area and so on.
    INTE-AUTO design, manufacture and distribute electrical and electronic connector and customized cable assembly solutions. Known for their quality and ruggedness, our products proved to be reliable in the most demanding environments
